Understanding Globe Valves: Design, Functionality, and Applications

Jan 10 , 2024

Globe valves are essential components in fluid control systems, designed to regulate the flow of liquids or gases within pipelines. They derive their name from their spherical body shape, consisting of a stationary seat and a movable disc or plug that is controlled by a stem. The key function of a globe valve is to control and modulate the flow rate precisely, making it an ideal choice for applications requiring accurate flow control and throttling.


Common Applications and Industries

Globe valves find widespread use in industries such as oil and gas, petrochemical, power generation, and water treatment. They are employed in various applications, including steam systems, boiler feedwater control, cooling water systems, and as isolation valves in process pipelines. Globe valves are especially valuable when precise control over flow rates is necessary, as they allow for fine adjustments and can handle a wide range of pressures and temperatures.

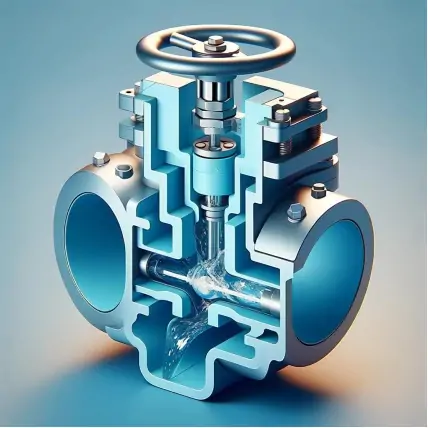

Globe Valve Parts

A typical globe valve consists of several key components:

Body: The main outer shell housing the internal components.

Bonnet: Covers and protects the valve internals, housing the stem and actuator.

Stem: Connects the actuator to the disc and controls its movement.

Disc (Plug): The movable component that regulates flow by sealing against the seat.

Seat: The stationary sealing surface that the disc presses against to control flow.

Actuator: Mechanism (handwheel, pneumatic, electric, or hydraulic) used to operate the valve.


Types of Globe Valves

Globe valves come in various configurations, including:

Tee Pattern Globe Valves: These valves have a linear flow path, making them suitable for precise control and low-pressure drop applications.

Wye Pattern Globe Valves: Designed with a Y-shaped body, they offer improved flow characteristics and reduced pressure drop, ideal for high-pressure systems.

Angle Pattern Globe Valves: Featuring a 90-degree bend in the flow path, they are suitable for applications with limited space and high-pressure requirements.

Additional Types based on Body-Bonnet Connection: Globe valves can also be classified based on their body-bonnet connection, including bolted bonnet, welded bonnet, and pressure seal bonnet designs.


Globe Valve Function and Working Principle

The primary function of a globe valve is to control fluid flow by adjusting the position of the disc relative to the seat. When the valve is fully open, the disc is lifted away from the seat, allowing maximum flow. Conversely, when the valve is fully closed, the disc seats tightly against the valve seat, preventing flow.


The working principle involves the actuator (handwheel, motor, or other mechanisms) controlling the stem's movement. As the stem moves, it raises or lowers the disc within the valve body. When the disc is in an intermediate position, it modulates the flow rate. Globe valves offer excellent throttling capability due to the linear relationship between the disc's position and the flow rate, making them suitable for precise flow control applications.




Globe Valve Seating and Disc Designs

Globe valves employ various seating configurations, including flat, conical, and parabolic seats. The choice of seating design depends on the specific application requirements for sealing efficiency and control accuracy.


Disc designs vary, with options like flat, plug, and ball-type discs. Flat discs provide a broad sealing surface and are ideal for tight shutoff, while plug and ball-type discs offer enhanced throttling capabilities, making them suitable for precise flow control.


Advantages and Disadvantages of Globe Valves

Advantages:

Precise Flow Control: Globe valves allow for accurate regulation of flow rates.

Versatility: Suitable for various industries, pressures, and temperatures.

Tight Shutoff: Effective sealing prevents leakage when fully closed.

Good throttling capability: Ideal for applications requiring fine control.

Durability: Long service life due to robust construction.

Disadvantages:

Pressure Drop: Globe valves can cause significant pressure losses.

Maintenance Intensive: Complex design may require more maintenance.

Slower Operation: Slower opening and closing compared to some other valve types.


Applications of Globe Valves in Different Industries

Globe valves find applications in industries such as oil and gas, petrochemicals, power generation, water treatment, and HVAC systems. In oil and gas, they are used for flow control in pipelines, wellhead control, and refining processes. In power plants, they regulate steam flow, boiler feedwater, and cooling water systems. Water treatment facilities employ globe valves for precise control of water and chemical flows. HVAC systems utilize them for temperature and pressure control in heating and cooling processes.


Globe Valve vs. Other Valves

Comparison with Gate Valves:

Globe valves offer better flow control capabilities, while gate valves are primarily for full open or full closed applications.

Gate valves have lower pressure drops compared to globe valves.

Globe valves are preferred for throttling, whereas gate valves are used for isolation.

Comparison with Ball Valves:

Ball valves have quicker operation and lower pressure drops than globe valves.

Globe valves provide better flow control and can handle higher temperatures.

Ball valves are suitable for on-off applications, while globe valves excel in precise control.


Maintenance, Troubleshooting, and Selection Considerations

Maintenance requirements for globe valves include regular lubrication of stems, inspection of seats and discs for wear, and actuator maintenance. Troubleshooting common issues like leakage, stem binding, or actuator problems can involve stem packing replacement, disc and seat resurfacing, or actuator repair.


When selecting a globe valve, consider factors such as the required flow control precision, pressure and temperature ratings, material compatibility, and maintenance ease. Proper valve sizing is crucial to ensure optimal performance.


Globe Valve Standards and Certifications

Globe valves must adhere to industry standards and certifications such as API (American Petroleum Institute) and ASME (American Society of Mechanical Engineers) standards. These standards ensure valve reliability, performance, and safety. Common certifications include API 600 for steel valves, API 602 for compact steel valves, and ASME B16.34 for pressure-temperature ratings. Compliance with these standards and certifications is essential to meet industry regulations and ensure the quality of globe valves used in critical applications.
